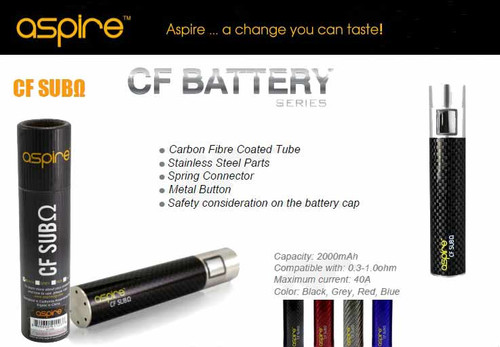

Aspire CF SUBΩ Battery

The Aspire CF Battery series are high-end e-cigarette power systems. This battery series features stainless steel endpoints, a metal button, and a carbon fiber coated tube.The Aspire CF Batteries contain a revolutionary spring connector. This unique technology ensures that there will always be a strong connection between the battery and e-cigarette tank. The structural design and control circuit of this battery series makes using it extremely reliable and stable. Aspire cf subΩ battery supply intense power for low resistance atomizer.

Features:

  • Stainless steel w/carbon fiber (available in 4 different colors)
  • Bottom vent holes
  • Stainless steel top and bottom caps
  • on/off w/LED indicator
  • 2000mAh battery capacity
  • Unique spring connector
  • 40A Max output current
  • Compatible with 0.3-1.0ohm

Usage :

  • Turn on/off : Press the button 5 times in succession in 2 seconds. The LED will blink 3 times ( both blue and orange) and button will illuminte blue active and ON . Repeat the same process to turn OFF.
  • Usage: Press the button and inhale at the same time.
  • LED light: Blue = Battery Voltage 3.5v-4.2v
  • LED light: Orange= Battery Voltage below 3.5v
  • Output Voltage : 4.2v full power output
  • Compatible with : 0.3ohms -1.0 ohms

Charging:

  • Available Capacity: 2000mah
  • Low Battery Indication : Battery Orange indicator light blinks 15 times
  • Charger Specification : 4.2 output
  • Complete battery charger : 2-5 hours
  • USB charging adapter compatible

Charging instruction:
1.Unscrew the battery from your atomzier.
2.Gently screw battery into the USB charger.
3.Plug the USB into the supplied wall charger..
4.The light on the USB charger will be red when charging.
6.Once fully charged, the USB charger will display a green light, and the LED light on
battery will turn off.

Protection Function:

  • Over Charge Protection : When the battery is over-charged (beyond 4.25v) the in built microchip will automatically stop the charging
  • Over discharge Protection: When battery cell voltage is less than 3.2v(low battery), the atomizer will remain OFF and the orange LED will blink 15 times.
  • Atomizer Short Circuit Protection : If heating coils are short circuited while vaping, the LED lights(both colors) will flash 3 times, and the battery will default to sleep mode.
  • Charging Short Circuit Protection: If the charger is short circuited while charging the battery will default to OFF mode , stop charging and battery light (both colors) will flash 6 times.
  • Lock and unlock function: To lock the battery, press the button 5 times in succession in 2 seconds.The led light (both colors) will flash 3 times. repeat this procedure or recharge unlock.
