LG HG2 18650 3000mah 20A

$9.49

LG HG2 18650 3000mah 20A

$9.49
Share

Product Description

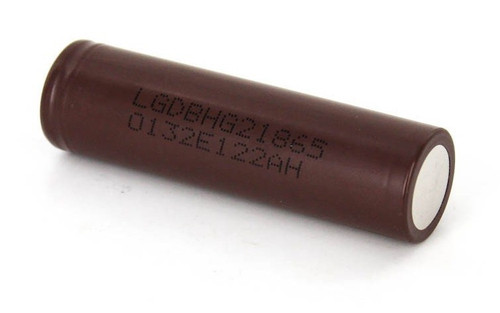

 LG HG2 18650 3000mah 35A*  3.7v rechargeable lithium battery.

Safe chemistry Li-MN 3.7V rechargeable battery does not require protection circuit. These cells can handle high amperage and is safe to use in series / multi-cell applications. Max pulsed discharge 30A, max continuous discharge 20A. Can be charged with any Li-Ion battery charger with 4.2V output. Price is per single cell (1x)

  • Brand Name: LG
  • Size: 18650
  • Model: LG 18650-HG2
  • Type: Li-Mn (High Drain)
  • Rated Capacity: 2500mAh
  • Max Pulsed Discharge 30A
  • Max Continuous Discharge 20A
  • Nominal Voltage: 3.6V
  • Peak Voltage: 4.2V
  • Dimensions: 18.3mmX65mm
  • Rechargable: Yes
  • Protected: No
  • Chemistry: Lithium manganese Dioxide (Li-Mn02)
  • Style: Flat Top
  • Color: Brown

NOTE: Use special caution when working with Li-ion cells, they are very sensitive to charging characteristics and may explode or burn if mishandled. Make sure the user has enough knowledge of Li-Ion rechargeable batteries in charging, discharging and assembly before use. Always charge in/on a fire-proof surface. Never leave charging batteries unattended. We are not responsible for damage if there is any modification of the batteries/chargers in any form or shape (including pack making). We are not responsible for any damage caused by misuse or mishandling of Li-Ion batteries and chargers. We only recommend using Lithium Ion rechargeable batteries with a control circuit (protection PCB) to assure safe charge, discharge, etc, use of lithium ion batteries with a protection circuit is potentially hazardous.

Official specifications:

  • Nominal Capacity: 3000 mAh
  • Nominal Voltage: 3.6V
  • Standard Charge: 1250mA, cut off: 50mA
  • Fast charge: 4000mA, cut off: 100mA
  • Max. Charge Voltage: 4.2 +/-0.05 volt
  • Max. Charge Current: 4000mA
  • Standard Discharge: 500mA
  • Fast Discharge: 10000mA, 20000mA
  • End voltage: 2.5 volt
  • Weight Max.: 47.0 g
  • Operating Temperature: Charge 0 ~ 50°C, Discharge -20 ~ 75°C
  • Storage Temperature: 1 month -20 ~ 60°C, 3 month -20 ~ 45°C, 1 year -20 ~ 20°C
