- Panasonic NCR18650PF 2900mah Hybrid IMR Rechargeable Battery
Product Description

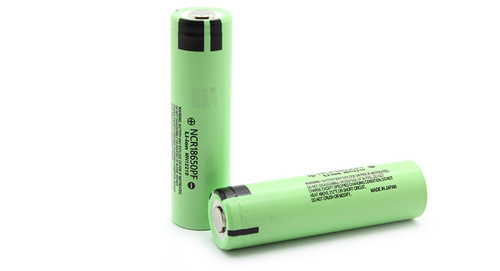

Panasonic NCR18650PF 2900mah Li-Ion Hybrid IMR Rechargeable Battery
Panasonic has always used proprietary chemistries and manufacturing processes in their cylindrical cells. It's why they are better than the rest.
The NCRs are a high-drain, low impedance, safer chemistry cell. They're equal in safety to an IMR cell while carrying higher charge capacity. However, they have a lower drain limit and higher impedance than an IMR cell.
The NCR18650PF cells are a suitable substitute for any mod that calls for an IMR cell. As far as safety, the same applies to these cells as IMR cells.
- Brand Name: Panasonic
- Size: 18650
- Model: NCR18650PF
- Type: Li-Ion Hybrid IMR(High Drain)
- Rated Capacity: 2900mAh
- Max Continuous discharge: 10A
- Max Discharge Pulse Current (5-6 sec.): 18A
- Max Charge Current 1.35A
- Nominal Voltage: 3.7V
- Full Charge Voltage Voltage: 4.2V
- Dimensions: 18.25mm X 65mm
- Rechargable: Yes
- Protected: No (not required with Hybrid chemistry)
- Chemistry: Li-ion Hybrid
- Style: Flat Top
- Color: Green
Warnings:
- Do not overdischarge/overcharge
- Do not Store discharged
- Do not short circuit
- Do not dispose of in fire
- Do not expose to extreme heat or water
NOTE: Use special caution when working with Li-ion cells, they are very sensitive to charging characteristics and may explode or burn if mishandled. Make sure the user has enough knowledge of Li-Ion rechargeable batteries in charging, discharging and assembly before use. Always charge in/on a fire-proof surface. Never leave charging batteries unattended. We are not responsible for damage if there is any modification of the batteries/chargers in any form or shape (including pack making). We are not responsible for any damage caused by misuse or mishandling of Li-Ion batteries and chargers. We only recommend using Lithium Ion rechargeable batteries with a control circuit (protection PCB) to assure safe charge, discharge, etc, use of lithium ion batteries with a protection circuit is potentially hazardous.
