Product Description

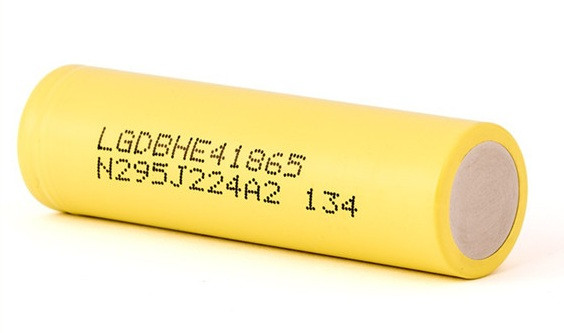

LG HE4 18650 2500mah 35A* 3.7v rechargeable lithium battery.
Safe chemistry Li-MN 3.7V rechargeable battery does not require protection circuit. These cells can handle high amperage and is safe to use in series / multi-cell applications. Max pulsed discharge 35A, max continuous discharge 20A. Can be charged with any Li-Ion battery charger with 4.2V output. Price is per single cell (1x)
- Brand Name: LG
- Size: 18650
- Model: LG 18650-HE4
- Type: Li-Mn (High Drain)
- Rated Capacity: 2500mAh
- Max Pulsed Discharge 35A
- Max Continuous Discharge 20A
- Nominal Voltage: 3.6V
- Peak Voltage: 4.2V
- Dimensions: 18.3mmX65mm
- Rechargable: Yes
- Protected: No
- Chemistry: Lithium manganese Dioxide (Li-Mn02)
- Style: Flat Top
- Color: Yellow
NOTE: Use special caution when working with Li-ion cells, they are very sensitive to charging characteristics and may explode or burn if mishandled. Make sure the user has enough knowledge of Li-Ion rechargeable batteries in charging, discharging and assembly before use. Always charge in/on a fire-proof surface. Never leave charging batteries unattended. We are not responsible for damage if there is any modification of the batteries/chargers in any form or shape (including pack making). We are not responsible for any damage caused by misuse or mishandling of Li-Ion batteries and chargers. We only recommend using Lithium Ion rechargeable batteries with a control circuit (protection PCB) to assure safe charge, discharge, etc, use of lithium ion batteries with a protection circuit is potentially hazardous.
Official specifications:
- Nominal Capacity: 2,500 mAh
- Nominal Voltage: 3.6V
- Standard Charge: 1250mA, cut off: 50mA
- Fast charge: 4000mA, cut off: 100mA
- Max. Charge Voltage: 4.2 +/-0.05 volt
- Max. Charge Current: 4000mA
- Standard Discharge: 500mA
- Fast Discharge: 10000mA, 20000mA
- End voltage: 2.5 volt
- Weight Max.: 47.0 g
- Operating Temperature: Charge 0 ~ 50°C, Discharge -20 ~ 75°C
- Storage Temperature: 1 month -20 ~ 60°C, 3 month -20 ~ 45°C, 1 year -20 ~ 20°C
